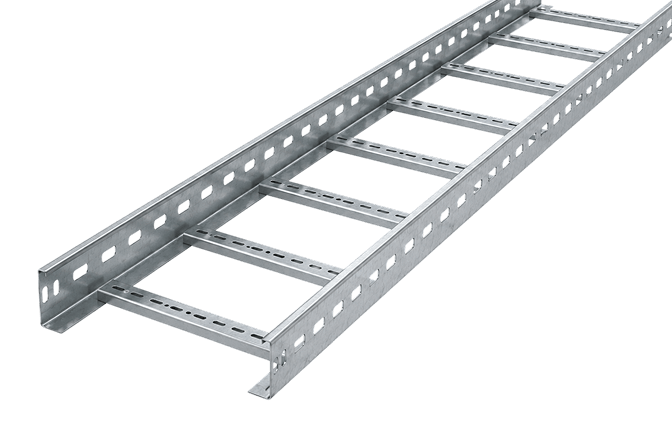

A Ladder Cable Tray has two side rails connected by rungs.
This type of cable tray is effective because the ladder rungs give you easy accessibility to the cables from the top or bottom.
Inquiry NowSpecifications
Width (W):
150mm - 1500mm
Runner Height (H):
50mm - 150mm
Runner Collar (C):
15mm - 45mm
Thickness (T):
1.6mm - 3.0mm
Rungs Interval:
250mm - 300mm
Rung Size:
35x15mm , 40x20mm, 50x20mm
Raw Material for Tray:
Mild Steel (M.S), G.I Sheet, Aluminium & StainlessSteel (S.S)
Finish:
Hot Dip Galvanized, Powder Coated, Painted, Pre-Galvanized

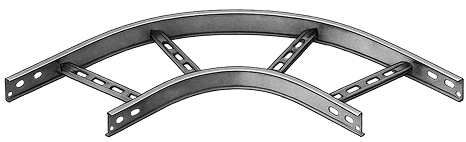

Horizontal Bends
Direction change in horizontal plane. Available in 30°, 45°, and 90° angles.

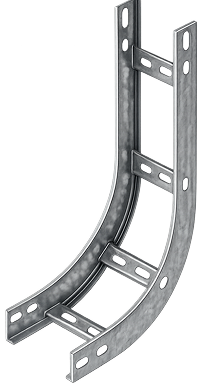

Vertical Bends Internal
Enables downward routing between levels.

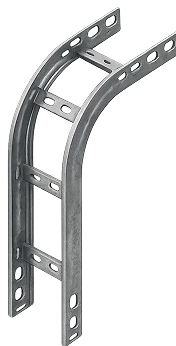

Vertical Bends External
Enables upward routing between levels.

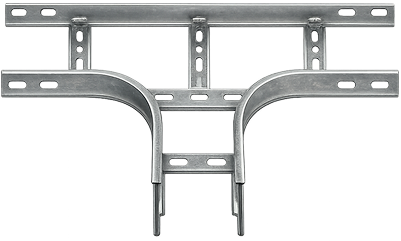

Tee Junction
Three-way branching of cable routes from main tray run.

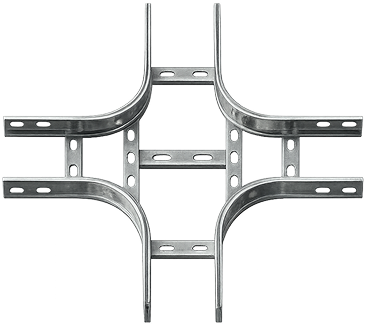

Cross junction
Four-way routing junction for multi-directional cable routes.

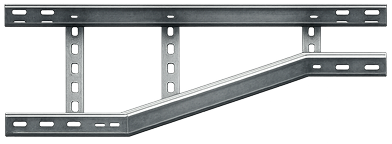

Reducer
Connects two trays of different widths - concentric or eccentric.
